GRP1000 Track Geometry Measurement System
GRP 1000 Track geometry measurement system can be used to measure the geometry of the track, and it has been widely recognized by railway market because of its high accuracy, easily to use, and reliable performance.

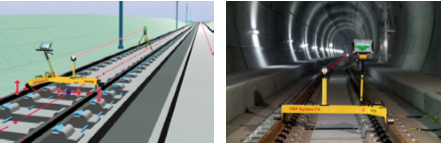

The main body of the system is a three-point hand-propelled trolley, and with the gauge, tilt, stationing sensor in it to collect the inner track geometry parameter. (e.g gauge, super elevation, stationing, twist, etc.) The system can also work with the total station through wireless communication, to measure the outer geometry of the track (such as coordinates of the middle line, elevation of the rail surface, etc.), and calculate the long and short wave parameter in both horizontal and vertical direction of the track. All measurement data are automatically obtained, processed and analyzed by professional software on the Panasonic rough computer. The design parameter of the track needs to be input into the measurement software in advance. After the measurement is completed, users can choose to export different kinds of data reports and graphics reports according to meet their different needs.
Application range:
l High speed lines’ construction and acceptance with slab track
l Operation lines’ re-design survey and track survey
l Ballast track survey for tamping
l Subway’s construction and acceptance with slab track
TGS FX Hand-pushed Trolley | Battery | ||
Stationing | Photoelectric counter measurement method | BRT | LT16-6,Li,16.8V,6.5Ah |
Accuracy of Stationing | ＜0.2％ | Working Time | 24h (with 2 batteries) |
Resolution of Stationing | 5mm | Panasonic | CF-19 Li Battery 10.65V 5.4Ah |
Gauge Types（mm） | 1000,1067,1435，1520/24,1600,1668/76 | Battery Working Time | 9h (with 2 batteries) |
Measurement Range | -25mm/+65mm tangent displacement sensor | Working Conditions | |
Gauge Measurement Accuracy | ±0.3mm(indication error) | Temperature | -20℃~+50℃ |
Super elevation | High precision tilt sensor | Humidity | 80％，no condensation |
Measurement Range | ±10°(±225mm for 1435mm standard gauge) | Measurement Efficiency | |
Accuracy | ±0.3mm(indication error for 1435mm standard gauge) | Track Geometry Parameter | 3~8s/point(coordinate, gauge, super elevation) |
TPS | LEICA TPS 1200/TS15/TS16/TS30/TS 50 | Data Update Frequency | 3Hz |
Weight of the System | 27.0kg | LEICA TPS1200 | 3Hz |
Overall Measurement Accuracy | ±1mm（outer geometry parameter） | TGS FX sensor | 10Hz |
