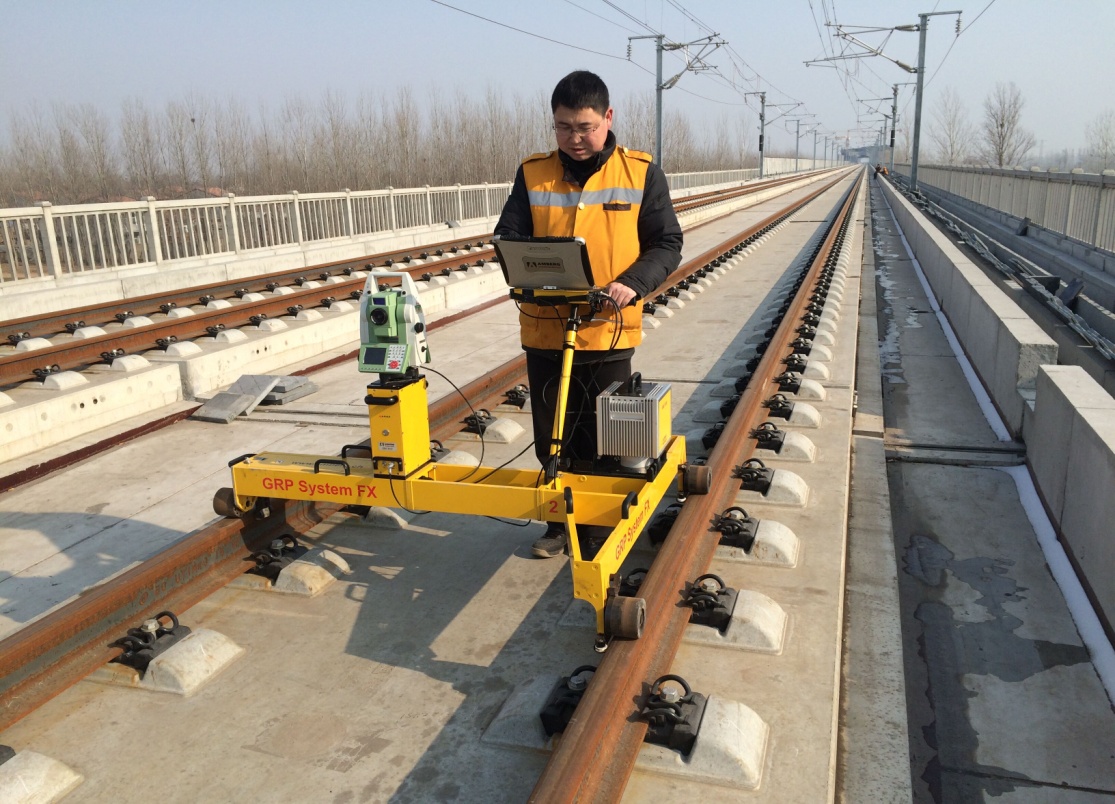

Stationing

Photoelectric counter measurement method

Battery working time

BRT,LT16-12,Li,16.8V,13Ah

Accuracy of Stationing

＜0.2％

Working Time

24h (with 2 batteries)

Resolution of Stationing

5mm

PC

CF-19 Li Battery 10.65V 5.4Ah

Gauge Types（mm）

1000,1067，1435，1520/24,1600,1668/76

Battery Working Time

9h (with 2 batteries)

Measurement Range

-25mm/+65mm tangent   displacement sensor

Working Conditions

Gauge Measurement Accuracy

±0.3mm(indication error)

Temperature

-20℃~+50℃

Super Elevation

High precision tilt sensor

Humidity

80％，no condensation

Measurement Range

±10°(±225mm for 1435mm standard gauge)

Measurement Efficiency

Accuracy

±0.3mm(indication error for   1435mm standard gauge)

Measurement Mode

Dynamic

TPS

LEICA TPS   1200/TS15/TS16/TS30/TS50

Distance of Each Setup

Multiple mode with distance  120m

AMU 1030 Unit

Efficiency

2km/h (multiple point mode   for slab track)

2km/h (multiple point mode   for ballast track)

3~4km/h (single point mode   for ballast track)

Data Update Frequency

100Hz

Data Interface with Tamping Machine

Measurement Accuracy

0.1mm mean square error   (chord length=10m)

Type of Tamping Machine

DC32/DCL32/DWL-48 ETC. with WinALC system

0.5mm mean square error   (chord length=30m)

Measurement accuracy

1.0mm mean square error   (chord length=70m)

Overall accuracy

1mm(without considering the error of CPs )

Weight of the whole system

40.4kg
