L&S Grinding Machine

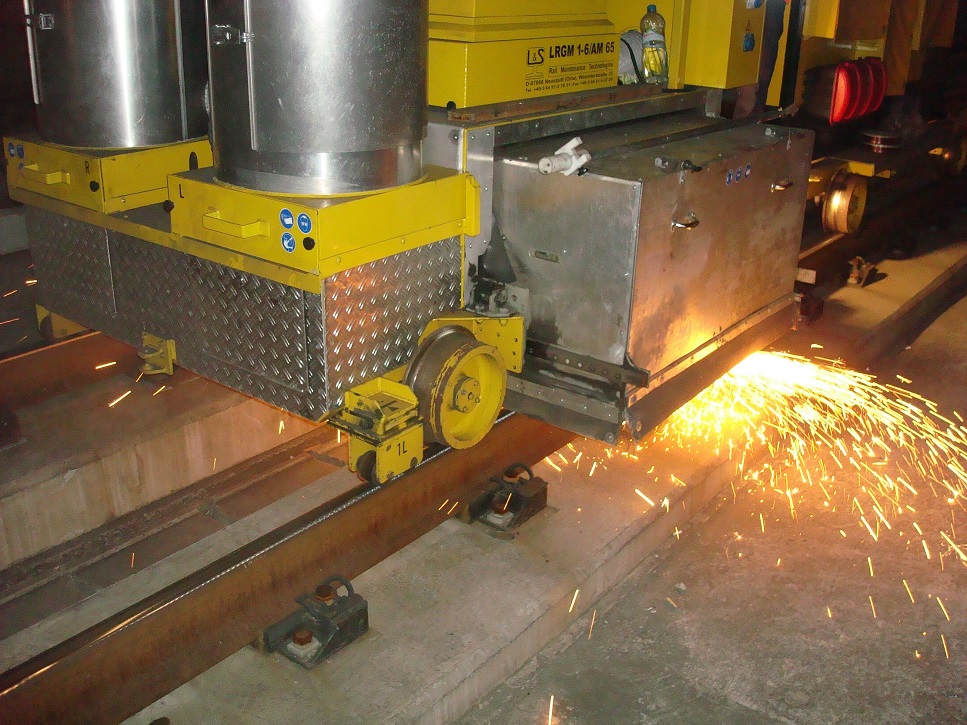

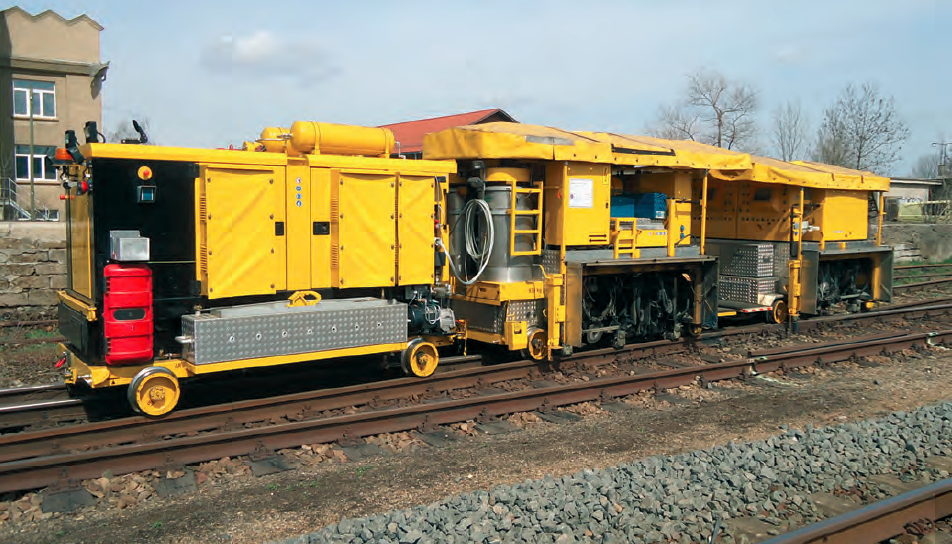

The LRGM 1-6/ AM65 is a turnout grinding machine for the machining of the rail head which composes except the grinding unit also a generator so that no power cables has to be installed along the working site. The grinder can be easily railed in and out with a ramp of a rail vehicle or by crane. The turnout grinding machine has 6 grinding spindles with independent angular adjustment. They are driven by 15 kW frequency controlled electrical motors.

The LRGM 1-6/ AM65 turnout grinder can be used for removing of the rolling skin, the elimination of rail corrugations (grooves) and short waves on the rail head as well as for the re-profiling of the rail head. The grinder is efficient for grinding of turnouts, machining of railroad crossings, grinding of welding, machining of taper rail and for winning the transverse and longitudinal target profiles in short rail sections.
