RCA Switch Gauge

The RCA switch measuring instrument is used to check the critical geometric dimensions of the switch. It can measure the track gauge, flange groove clearance, inspection interval, backrest distance, rail height and local core railreduction value in the switch area. It can also be adapted to the simulated sample block of wheel rim to test the abrasion state of the front end of the core rail of the sharp rail. The beam can be separated for easy storage and transportation.

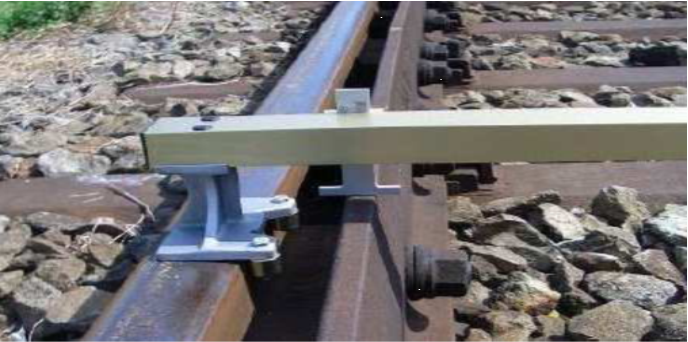

Lower the heart track value

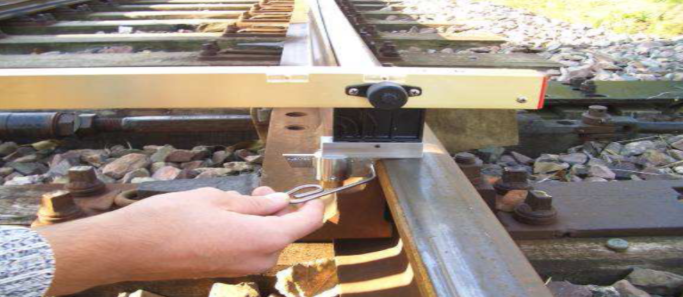

Guardrail height

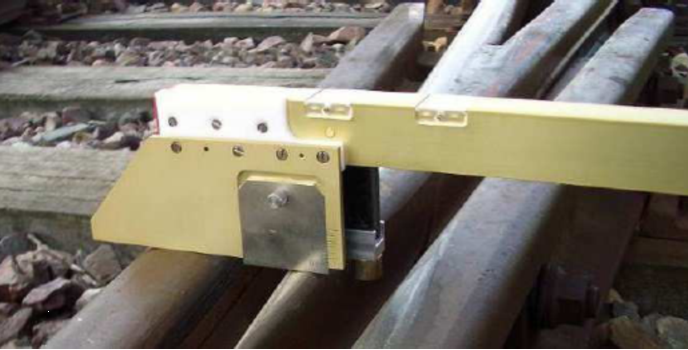

L1 and L2 rail detection module

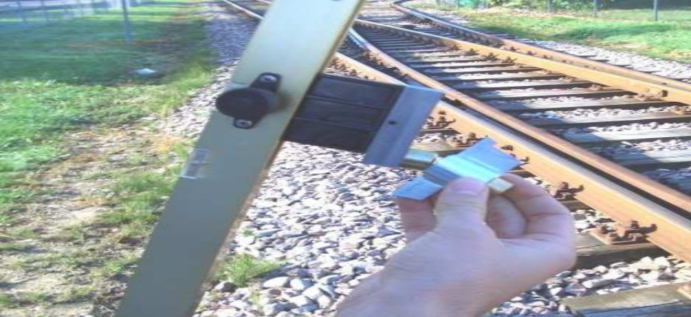

L1 and L2 rail detection module
