PMS II Cross Frofile Measuring System

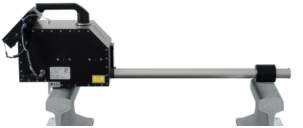

PMS II is a particularly handy, efficient solution for digitally recording rail cross-profiles. With its compact size and low weight, this measurement system is ready to operate after just a few adjustments. Device operation is supported through a clear and concise menu provided from the connected display and control unit “MPCe”. The measurement process is performed automatically and takes about 30 seconds. The measurement result is graphically displayed at once to be saved on internal SD memory card.

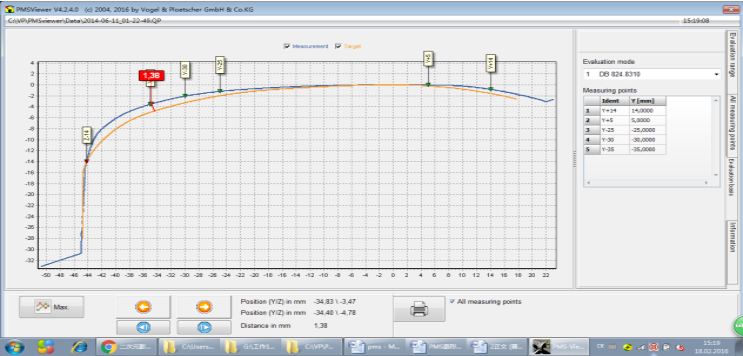

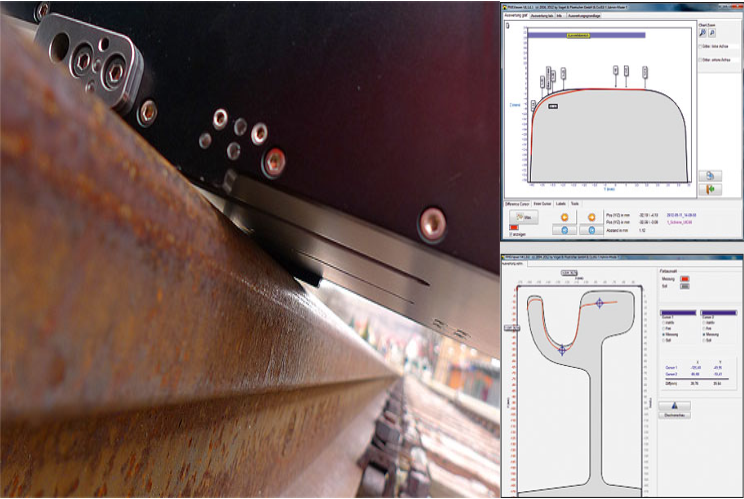

Data are recorded using the contact measurement principle: the rail surface is scanned by use of a high-precise sensor transmitting the data directly to the MPCe unit. Afterwards the stored measure-ment files can be exported to any computer via SD memory card. Detailed data evaluation is carried out using software “PMSviewer” supplied: various measurements can be com-pared directly with each other or to a reference profile (target-actual comparison).

The scope of functions of the PMS II can be extended even further if required. Using an integrated laser measuring unit, additional data on material erosion or groove depth can also be determined.
