Digital Corrugation Measuring Device
Wherever rails are welded, ground and milled, the results have to be assessed for quality control purposes: a job for the RM 1200digital.

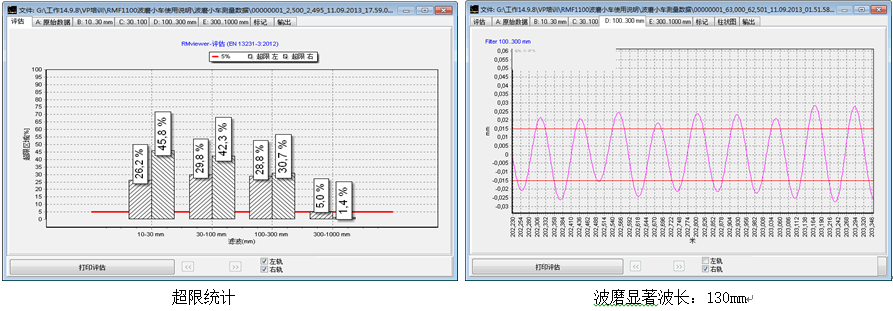

The handy measuring system is immediately ready for use, and the measurement is done in just a few seconds. The recorded raw data can be immediately viewed on the graphical LC display of the "MINI" storage and display module. The "RM-DigiReader" software program transfers the data from the MINI to a computer. For further evaluation and filtering of the raw data special add-on programs (including RMviewer) are used.

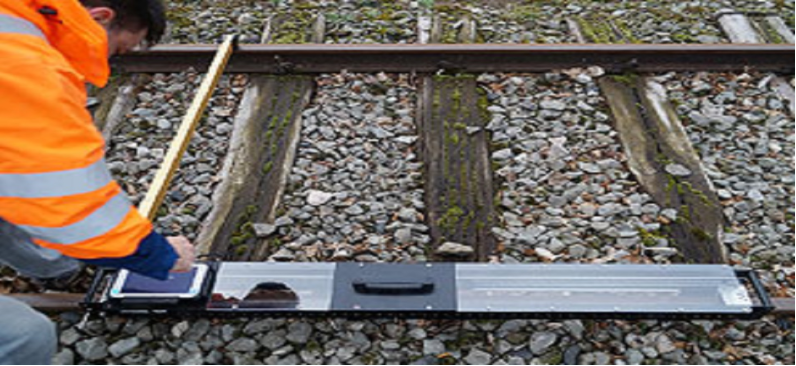

The data recording takes about 15 seconds only and is performed by simple manual movement. The measurement carriage is moved by a crank handle from start to end position along a 1200 mm distance. During this process the track surface is scanned and compared to a reference rail. The differences between examined rail and reference rail are digitally recorded in relation to the covered distance and finally saved in the "MiniPad" unit.
